您現在的位置：產品中心 > 沖孔

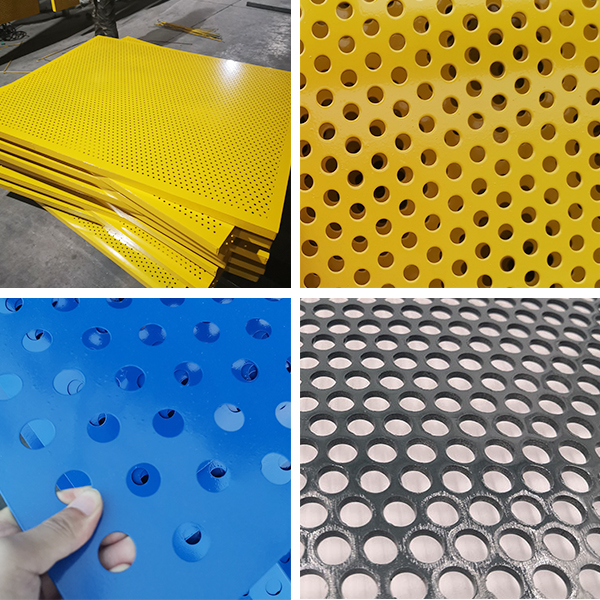

圓孔網產品圖片實拍
圓孔網和本廠的沖孔網，沖孔板是同一個產品是有些客戶看本產品大部分孔型為圓孔的多所以人們就稱他為圓孔網，圓孔網和其他沖孔網一樣都是可以選擇不同材質的板材經過數控沖床沖壓生產出來的像太厚或者圖案孔型非常特殊的我們也可以采用激光切割生產還有磚塔沖床生產，圓孔網材質，外形尺寸，板厚，孔型，間距，孔大小，孔排列方式都是可以靈活選擇的這樣大大提高了消費人群的實際應用，河北逍迪絲網制品有限公司生產的圓孔網經過多年的生產經驗，已經備有大量的加工模具，可隨時加工生產大量、少量的沖孔網板產品，還有高級的生產如楊力普通機械動力40噸沖床，楊力機械200噸重型沖床，臺勵福大尺寸轉塔沖，萬瓦級別空氣激光切割機，我們希望和更多客戶朋友取得聯系和成交我廠還有大量現貨供應銷售規格都是外形尺寸1000*2000孔型都為圓孔，材質為鍍鋅板，冷板，不銹鋼板，孔距孔大小還有板厚都是普通常用規格有需要的聯系我們?yōu)槟銏?bào)價
The round hole net and our punching net and punching plate are the same product. Some customers see that most of the holes of this product are round holes, so people call it round hole net. Like other punching nets, round hole net can be produced from different materials by numerical control punching machine. If it is too thick or the pattern hole is very special, we can also use laser cutting production There are brick tower punch production, round mesh material, overall size, plate thickness, hole type, spacing, hole size, hole arrangement can be flexibly selected, which greatly improves the practical application of consumers. After years of production experience, Hebei Xiaodi wire mesh products Co., Ltd. has a large number of processing molds, which can process and produce a large number of, a small number of products at any time Punching mesh plate products, as well as advanced production, such as Yangli ordinary mechanical power 40 ton punch, Yangli mechanical 200 ton heavy punch, tailifu large-size turret punch, wanwa level air laser cutting machine, we hope to get in touch with more customers and make a deal. Our factory also has a large number of spot supply, sales specifications are 1000 * 2000, hole type are round holes, material is galvanized sheet, Cold plate, stainless steel plate, hole distance, hole size and plate thickness are common specifications. If you need, please contact us for quotation
The coil is 1000 meters high and 20 meters long in stock. Each coil has round holes of galvanized plate. The overall dimension of the sheet is 1000 * 2000. The hole types are round holes. The material is galvanized plate, cold plate, stainless steel plate. The hole distance, hole size and plate thickness are common specifications
1孔1距，2孔2距，3孔3距，5孔2距，5孔3距，5孔5距，8孔4距，10孔3距，10孔5距，孔大小和間距也可以按你要求定做
1 hole 1 pitch, 2 hole 2 pitch, 3 hole 3 pitch, 5 hole 2 pitch, 5 hole 3 pitch, 5 hole 5 pitch, 8 hole 4 pitch, 10 hole 3 pitch, 10 hole 5 pitch, hole size and spacing can also be customized according to your requirements
最普通常用的是圓孔其次是六角孔，長孔，方孔還可以選擇魚鱗孔，長圓孔，長方孔，異形孔，起鼓孔，百葉孔，橋式孔，菱形孔，五角孔，八字孔，十字孔，指甲孔，梅花孔，人字孔，工字孔，微孔，大直徑孔，鱷魚嘴，長孔，三角孔，還有一些叫不上名的可以提供圖案或者cad圖紙為你安排生產
The most common hole is round hole, followed by hexagonal hole, long hole, square hole, fish scale hole, oblong hole, rectangular hole, special-shaped hole, bulging hole, louver hole, bridge hole, diamond hole, Pentagon hole, eight shaped hole, cross hole, nail hole, plum blossom hole, herringbone hole, I-shaped hole, micro hole, large diameter hole, crocodile mouth, long hole, triangle hole, and some others can not be named Provide pattern or CAD drawing to arrange production for you
寬度不超2.5米長度不超6米，尺寸控制在2.5m*6m范圍內就可以了現貨一般都是1米X2米，卷板現貨都是1米高20米一卷
The width is not more than 2.5 meters, the length is not more than 6 meters, and the size is controlled within the range of 2.5 m * 6 m. The stock is generally 1 m x 2 m, and the stock is 1 m x 20 m
Straight row: straight row is a straight line, so it is called straight row
Staggered 60 ° plum shape arrangement is the most popular one with high strength and frequent use. Generally speaking, staggered 60 ° is the default
Compared with 60 ° and 45 ° staggered, 45 ° has a different flavor choice
噴塑工藝又叫粉末噴涂，噴漆工藝，烤漆工藝，不銹鋼可以選擇拋光工藝，鋁板可以選擇陽極氧化工藝，拉絲工藝，熱鍍鋅工藝，冷鍍鋅工藝，電鍍鋅工藝
Plastic spraying process is also called powder spraying, spray painting process, paint baking process, stainless steel can choose polishing process, aluminum plate can choose anodizing process, wire drawing process, hot galvanizing process, cold galvanizing process, electro galvanizing process
冷板，鍍鋅板，熱板，鋁板，不銹鋼這五個用的比較普遍pp板，pvc板，201不銹鋼板，304不銹鋼板，316不銹鋼板，316L不銹鋼板，高錳鋼板，銅板，合金板還分1系，6系，7系，5系，4系，3系，2系，1系為常用系類
Cold plate, galvanized plate, hot plate, aluminum plate and stainless steel are commonly used. PP plate, PVC plate, 201 stainless steel plate, 304 stainless steel plate, 316 stainless steel plate, 316L stainless steel plate, high manganese steel plate, copper plate and alloy plate are also divided into 1 series, 6 series, 7 series, 5 series, 4 series, 3 series, 2 series and 1 series
冷板都是薄板0.4mm~2mm，熱板都是厚板2mm厚以上都是熱板，鍍鋅板0.4mm~4mm,不銹鋼板普通是0.8mm~3mm在厚也有，鋁板0.4mm~8mm為普通板在厚也有，卷板0.2mm~1mm太好卷板很少不代表沒有
Cold plates are all thin plates of 0.4mm-2mm, hot plates are hot plates with thickness of 2mm or more. Galvanized plates are 0.4mm-4mm, stainless steel plates are generally 0.8mm-3mm in thickness, and aluminum plates 0.4mm-8mm are common plates. The rolling plates are too good to be rolled with 0.2mm-1mm, which is rarely representative of no
像噴塑，噴漆，烤漆表面處理顏色是可以選擇的黃色，綠色，紅色，橙紅色，橙色，橙黃色，黃色，黃綠色，藍綠色，藍色，藍紫色，紫色，紫紅色，護欄綠，護欄黃，要量大的還可以配色因?yàn)楸热琰S色還分深黃色淺黃色，深多少淺多少都是可以讓師傅調配出來的
Like plastic spraying, spray painting, baking paint, surface treatment color is optional, yellow, green, red, orange red, orange, orange yellow, yellow, yellow green, blue-green, blue, blue purple, purple, purplish red, guardrail green, guardrail yellow, a large amount of color can also be matched, because for example, yellow is also divided into dark yellow and light yellow, how deep and how light can be made by the master
取得聯系-溝通設計-簽約合同-訂購原材料-加工沖壓-成型后看客戶有沒有需要進一步加工或表面處理-廠檢-打包-聯系運輸方式-送物流或快遞（空運，陸運，海運）-等待客戶收貨好評-下次繼續合作
Get in touch - communicate design - sign a contract - order raw materials - process stamping - see if the customer needs further processing or surface treatment after forming - factory inspection - Packaging - contact transportation mode - send logistics or express delivery (air, land, sea) - wait for the customer to receive good comments - continue cooperation next time
Dimensions are optional
The hole type can be selected
Materials can be selected
The color is optional
Surface treatment can be selected according to the situation
It is widely used
It has the function of beautiful decoration
Can play a protective role
Manufacturer professional
The price is cheap and reasonable
我們?nèi)粘Ｉ钪卸即嬖趫A孔網的用處只是人們平時沒有注意過主要應用領域在裝飾裝修方面，過濾方面，篩分方面，防護方面，護欄方面，隔離方面，設備方面，吊頂方面，金屬防蟲網方面，門窗方面，陽臺方面，電子方面，隔音吸音降噪方面，下面在詳細介紹一些實際應用地方：家庭門窗，鐵路，地鐵，建筑物體外墻，發電機房，工廠廠房，天花板，墻板吸音材料，建筑物樓梯，陽臺墊板，桌椅，機械設備防護罩，音箱網罩，糧食，飼料，礦山磨篩，礦篩，工字篩，廚房設備用的不銹鋼水果籃，食品罩，果盤，商場用的貨架網，裝飾展銷臺，糧庫用通風透氣網，足球場草坪滲水濾水濾網，電廠化工，制藥設備，食品機械，消音設備，空調，工藝品制作，濾清設備，公交車吊頂，高鐵站吊頂
In our daily life, there is the use of circular mesh, but people usually do not pay attention to the main application fields, such as decoration, filtration, screening, protection, guardrail, isolation, equipment, ceiling, metal insect proof net, doors and windows, balcony, electronics, sound insulation, sound absorption and noise reduction Some practical applications: family doors and windows, railway, subway, building objects, external walls, generator room, factory buildings, ceiling, wallboard, sound-absorbing materials, building stairs, balcony pad, tables and chairs, mechanical equipment protective cover, speaker net cover, grain, feed, mine grinding screen, mine screen, i-screen, stainless steel fruit basket for kitchen equipment, food cover, fruit plate, shopping mall Shelf net, decorative exhibition stand, ventilation net for grain depot, water seepage filter screen for football field lawn, power plant chemical, pharmaceutical equipment, food machinery, silencing equipment, air conditioning, arts and crafts production, filtering equipment, bus ceiling, high-speed rail station ceiling
訂貨須知：當您在我廠下單之后，您只要放心的在家坐等收貨就可以了，接下來的事由我們?yōu)槟瓿?，我們的?fù)責人員開始下單排產，按照您的需求將您所需要的沖孔板認真的完成，然后我們會和您溝通好收貨方式，為您找到您最方便接貨的物流，是整車，還是配貨，為您計算好，談好最合適的價格，再為您的產品穿上一層防護衣，保證它完好無損的送到您的家里
生產周期：根據客戶訂單量的大小和您商談好生產周期
付款方式：選擇我們之后，預付30%，生產完成后，我們會通知您，您將剩余的貨款打到我方賬戶，我們開始為您發貨
產品包裝：根據產品的精度和用途，我們會選擇簡裝或是精裝，以保證貨品的安全（可以溝通）
運輸方式：本地有通往全國各地的物流，可以零擔，整車，配貨，陸運，空運，海運和TNT，DHL，F(xiàn)EDEX，UPS，EMS，快遞，小件快運，我們會和客戶商量好，為您選擇最經濟合適的運輸方式，絕不讓您多花一分錢
質量保證：客戶收到貨后5天內，如發現材質不達標，規格有誤，我們將無條件為您退貨或調換，如是對方下單有誤，我們只能努力幫助您改進到最好為止，這便是我們河北逍迪絲網制品有限公司最人性化的服務方式，您準備好了嗎？我們時刻準備著，隨時歡迎全國各地的新老客戶來電咨詢和來廠參觀考察定做
